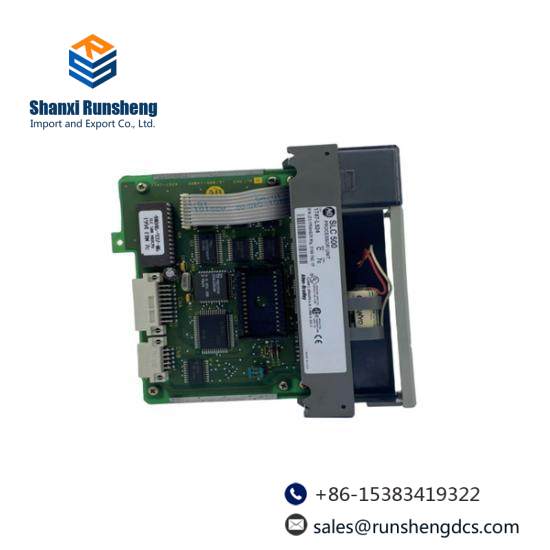

Advanced Programmable Logic Controller: 1747-L524/C SLC 5/02 Processor – Industrial Automation Excellence

Processor Type:Micro Modular Processor Unit

Manufacturer:Allen Bradley

Model Number:1747-L524/C

Processor Speed:20 MHz

Memory:8 KB

Backup:Flash Memory

Interface:RS-232

Communication Protocol:EtherNet/IP

Mounting:Chassis Mount

Output Configuration:Backplane: 1 mA at 5 VDC

Response Time:Typical Scan: 0.9 ms/Kword

Bit Execution:0.37 μsec

I/O Scan:0.255 ms

Programming Device:RSLogix 5000 Software

Enclosure Type:Open Type

Display:Status LEDs

Dimensions:Length: 117 mm, Width: 35 mm, Height: 142 mm

Temperature Range:0°C to 60°C

Humidity Range:5% to 95% non-condensing

Shock Resistance:30 G

Vibration Resistance:0.015 in (displacement) at 2.5 Hz

    Engineered for medium-scale industrial automation, the Allen Bradley 1747-L524/C SLC 5/02 Modular Processor offers unparalleled reliability and efficiency. Its advanced instruction set enables seamless integration with existing systems, ensuring smooth operation in diverse industrial settings.

    Equipped with a robust 16 KB memory capacity, this processor ensures ample space for storing critical data and control algorithms. The integrated backup system using Flash Memory safeguards against data loss, maintaining operational integrity even under challenging conditions.

    With versatile communication options including RS-232 Ports and EtherNet interfaces, the Allen Bradley 1747-L524/C provides seamless connectivity to various network protocols, facilitating efficient data exchange between different components of an automated system.

    Featuring a chassis mounting configuration, this modular processor can be easily integrated into existing or new industrial setups. Its compact size (145 mm x 35 mm x 142 mm) allows for optimal space utilization without compromising performance.

    The processor’s response time of 0.9 ms/Kword ensures rapid processing capabilities, enhancing overall system responsiveness. Coupled with compatibility with RSLogix™ 5000 Software, it simplifies programming and maintenance, enabling users to quickly adapt to changing requirements.
