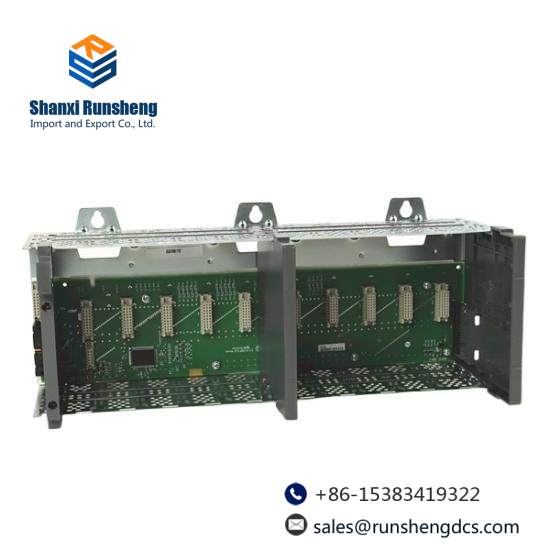

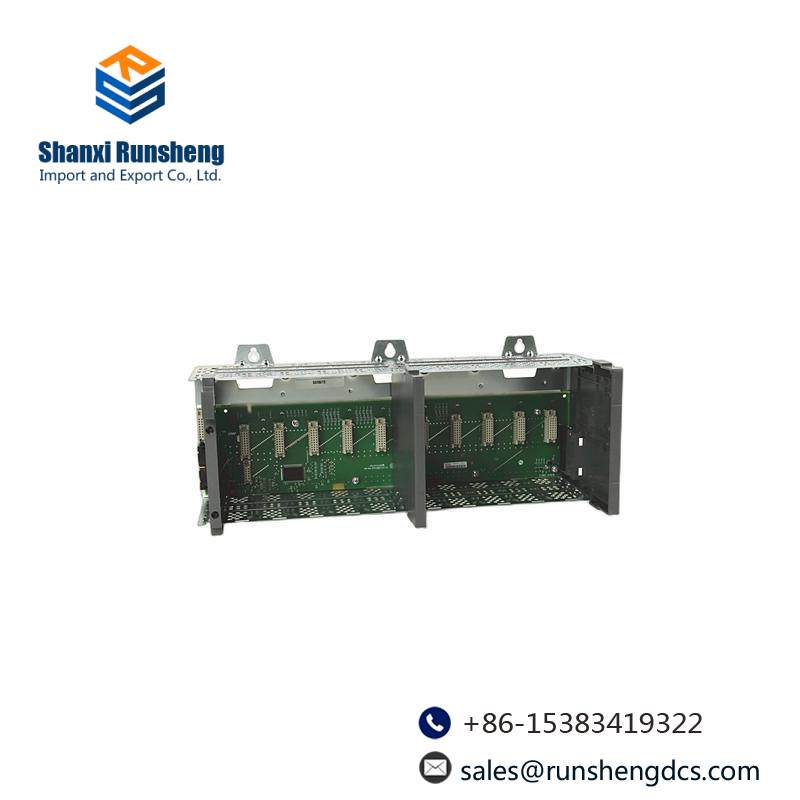

Allen-Bradley 1746-A10 SLC500 I/O Chassis

Model Number:1746-A10

Manufacturer:Allen Bradley

Series:SLC500

I/O Chassis Type:Slot Type Chassis

Capacity:10 Slot

Mounting:Panel

Temperature Rating:0 – 60 DEG C

Enclosure:Open Type

Form Factor:Slot Type Chassis

Cooling:Convection

Dimensions (L x W x H):5.8 IN x 15.9 IN x 6.8 IN

Maximum Backplane Current:5.1 VDC At 10 A, 24 VDC A 2.88 A

Weight:3.2 LB Without Modules

Power Consumption:1.8 W

Power Dissipation:6.1 BTU/HR

Certifications:GOST_R, KCC, MARINE-ABS, MARINE-BVS, MARINE-DNV, MARINE-GL, MARINE-KRS, MARINE-LR

    The Allen-Bradley 1746-A10 SLC500 Chassis is designed to provide a stable and efficient mounting platform for SLC500 controllers and I/O modules. Its compact design allows for easy installation in tight spaces, making it suitable for a wide range of industrial applications.

    This chassis is built to withstand harsh environments with a temperature rating of 0 to 60 degrees Celsius, ensuring reliable performance even under extreme conditions. The open-type enclosure promotes excellent heat dissipation through convection cooling, further enhancing its durability.

    With a capacity of 10 slots, the 1746-A10 provides ample space for connecting various I/O modules, allowing for flexible system configurations. This makes it ideal for small to medium-sized automation projects where space and cost efficiency are crucial.

    The chassis is equipped with robust mounting options that enable secure panel installation, ensuring stability during operation. It also supports a maximum backplane current of 5.1 VDC at 10 A and 24 VDC at 2.88 A, providing reliable power distribution for connected modules.

    Compliance with international standards such as GOST_R, KCC, and various marine certifications ensures the chassis can operate reliably in global markets, including maritime environments. This makes it a versatile choice for both land-based and marine applications.
