Number of Channels:4
Input Type:High-Resolution Analog
Common Mode Voltage Range:-20 to 20 V
Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS (Max.)
Input Range:-10 to 10 VDC – 1 LSB
Absolute Input Current:-30 to 30 mA (Max.)
Voltage Rating:Overvoltage Protection: 7.5 VAC RMS
Current Rating:Backplane Current Draw: 35 MA at 5 V, 85 MA at 24 V
Isolation:Backplane: 500 VDC, Enclosure: Open Type

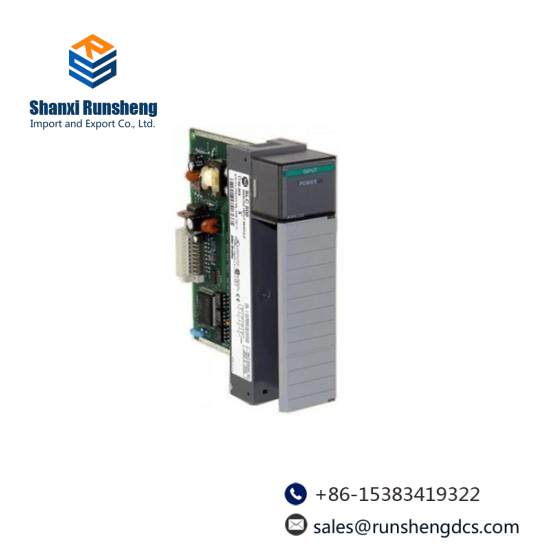

Precision-engineered for industrial applications, the Allen Bradley 1746-NI4B Analog Input Module ensures reliable data acquisition.
With its high-resolution capabilities, this module accurately captures analog signals, providing essential feedback for control systems.
Featuring four input channels, it supports a wide range of applications from monitoring environmental conditions to controlling process variables.
The robust design includes overvoltage protection and isolation, ensuring stable operation in harsh industrial environments.
Easy integration with Allen-Bradley’s PLCs (Programmable Logic Controllers) facilitates seamless setup and configuration, enhancing system efficiency.
