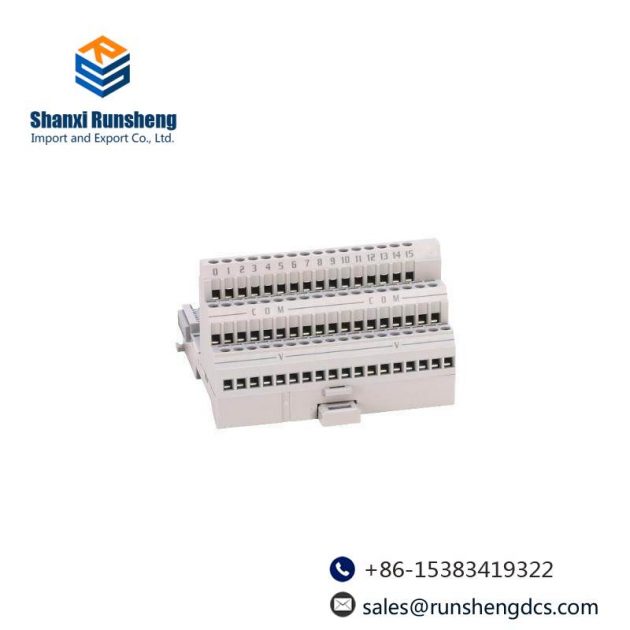

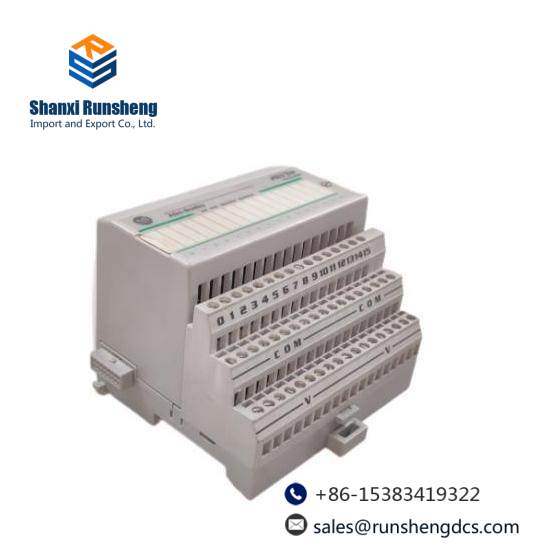

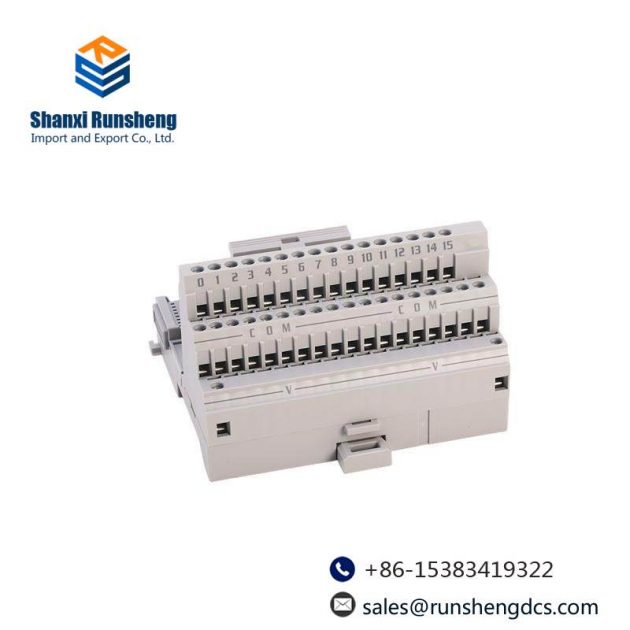

Product Type:Flex I/O Terminal Base Unit
Model Number:1794-TB3S
Manufacturer:Rockwell Automation
Terminal Screw Torque:0.56-0.79 Nm
Supply Voltage Range Max:125V DC/AC, 50/60Hz, 10A
Isolation Voltage:125V
Continuous Voltage Rating:24V DC/AC, 120V DC/AC
Operating Temperature Range:-40°C to +85°C
Humidity Range:5% to 95%, non-condensing
Dimensions:Width: 12.2mm, Height: 88.4mm, Depth: 121.4mm
Weight:Approximately 118g
The Allen Bradley 1794-TB3 is a high-quality terminal base unit designed for use in industrial control systems. This unit provides a solid connection point for various input/output modules, ensuring seamless integration into larger automation setups. With a screw torque range of 0.56-0.79 Nm, it ensures secure connections without over-tightening. The unit supports a wide supply voltage range up to 125V DC/AC, making it suitable for diverse industrial environments. Its isolation voltage of 125V guarantees safe operation and protection against electrical surges. The continuous voltage rating supports both 24V DC/AC and 120V DC/AC, providing flexibility for different applications. The Allen Bradley 1794-TB3 is easy to install and maintain, featuring a DIN rail mounting design for quick and secure installation. Its compact size and robust construction make it an excellent choice for demanding industrial environments.
